100v dc voltmeter 3 wires

PKR 240

Measures 0–100 V DC
Requires separate 4–30 V DC power supply
3-wire connection: common, power, and sense lines
Reverse polarity protection built-in
Low current consumption (< 8 mA)
Fast refresh rate (~200 ms)
Compact size: 48 × 29 × 26 mm for easy panel mounting
Durable LED readout with 0.56″ digits

Delivery in 1–5 Working Days* i

کسٹمر کو ادائیگی سے پہلے پارسل کھولنے کی اجازت ہے۔

10 Days Easy Returns

Shop with confidence

Open Before Payment

Pay only when satisfied

Trusted Since 2016

Your reliable partner

Add to wishlist

SKU: 1186-1 Category: Meters Tag: voltmeter

Description

100v dc voltmeter 3 wires

Specifications:

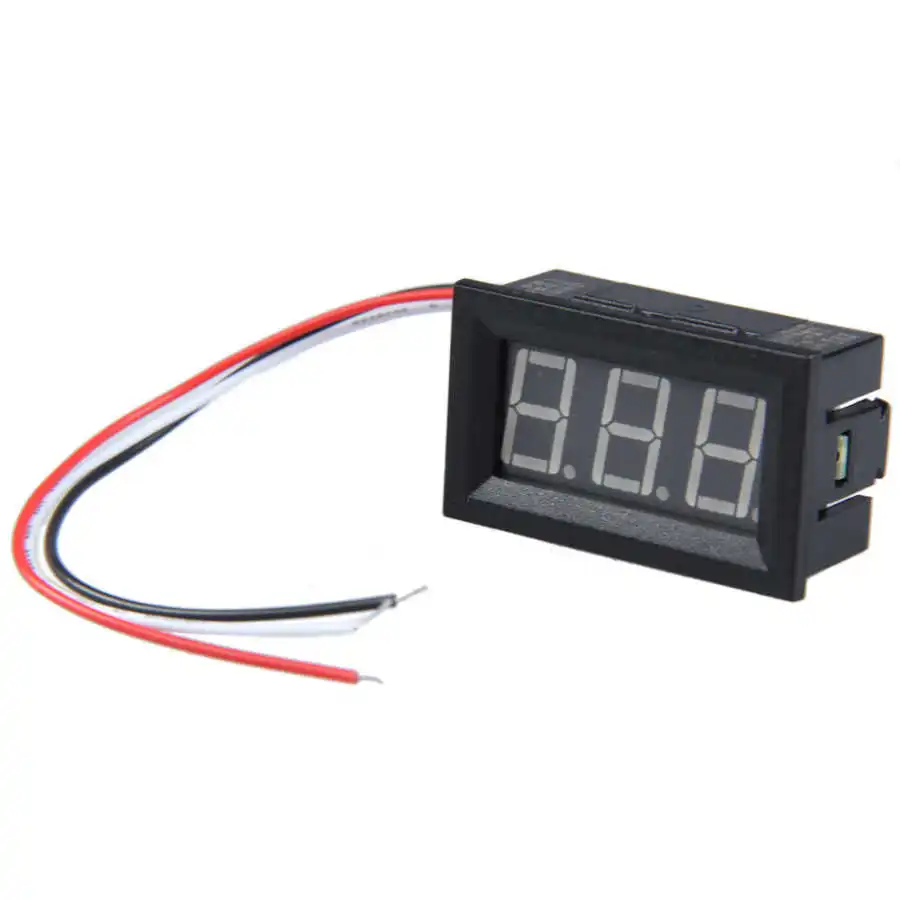

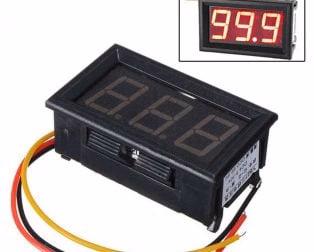

Digital Voltmeter is a compact and highly accurate 3-wire panel meter for measuring DC voltage from 0 to 100 V. It features a bright 0.56-inch LED display and reverse polarity protection to safeguard against wiring mistakes.

Powered by a separate 4–30 V supply, this voltmeter shares its ground with the measured source via its black lead, while the measuring lead is connected to the positive terminal of the target voltage. Its low operating current (less than 8 mA) makes it energy efficient, and the update rate of around 200 ms ensures real-time monitoring.

Designed for a variety of applications from power supplies and battery pack monitoring to custom electronics provides reliable, realtime voltage readings. Its compact form factor (48 × 29 × 26 mm) makes it easy to mount in enclosures or panels.

1PC 0.56 inch 100v DC voltmeter 3 wires

Additional information
