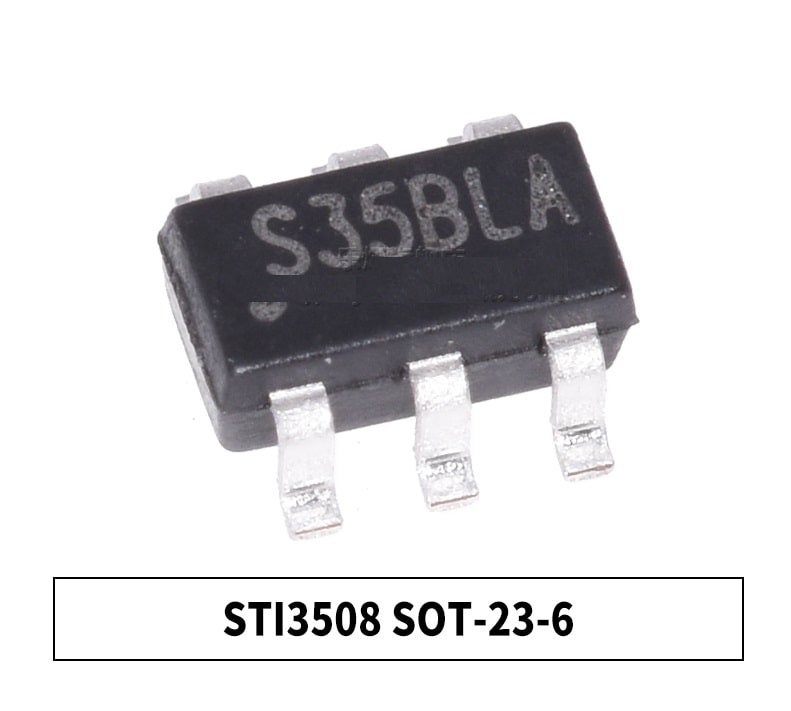

STI3508 S35 28V High Efficiency sot23-6 1MHz, 2A Step Up Regulator IC buy in Pakistan

PKR  40

In stock

x

کسٹمر کو رقم ادائیگی سے پہلے پارسل کھولنے کی اجازت ہے

Weight 0.01 kg
Description

STI3508 S35 28V High Efficiency sot23-6 1MHz, 2A Step Up Regulator IC
Description:

Integrated 80mΩ Power MOSFET
2V to 24V Input Voltage
1MHz Fixed Switching Frequency
Internal 4A Switch Current Limit
Adjustable Output Voltage
nternal Compensation
Up to 28V Output Voltage
Automatic Pulse Frequency Modulation
Mode at Light Loads
up to 97% Efficiency
Available in a 6-Pin SOT23-6 Package
APPLICATIONS
Battery-Powered Equipment
Set-Top Boxed
White LED Driver
Power Bank
DSL and Cable Modems and Routers

Specifications:

The STI3508 is a constant frequency, 6-pin
SOT23 current mode step-up converter
intended for small, low power applications.
The STI3508 switches at 1MHz and allows
the use of tiny, low cost capacitors and
inductors 2mm or less in height. Internal
soft-start results in small inrush current and
extends battery life.
The STI3508 features automatic shifting to
pulse frequency modulation mode at light
loads. The STI3508 includes under-voltage
lockout, current limiting, and thermal
overload protection to prevent damage in
the event of an output overload. The
STI3508 is available in a small 6-pin SOT-23
package.

Package Included:
1x STI3508 S35 28V High Efficiency sot23-6 1MHz, 2A Step Up Regulator IC
