Product Description:

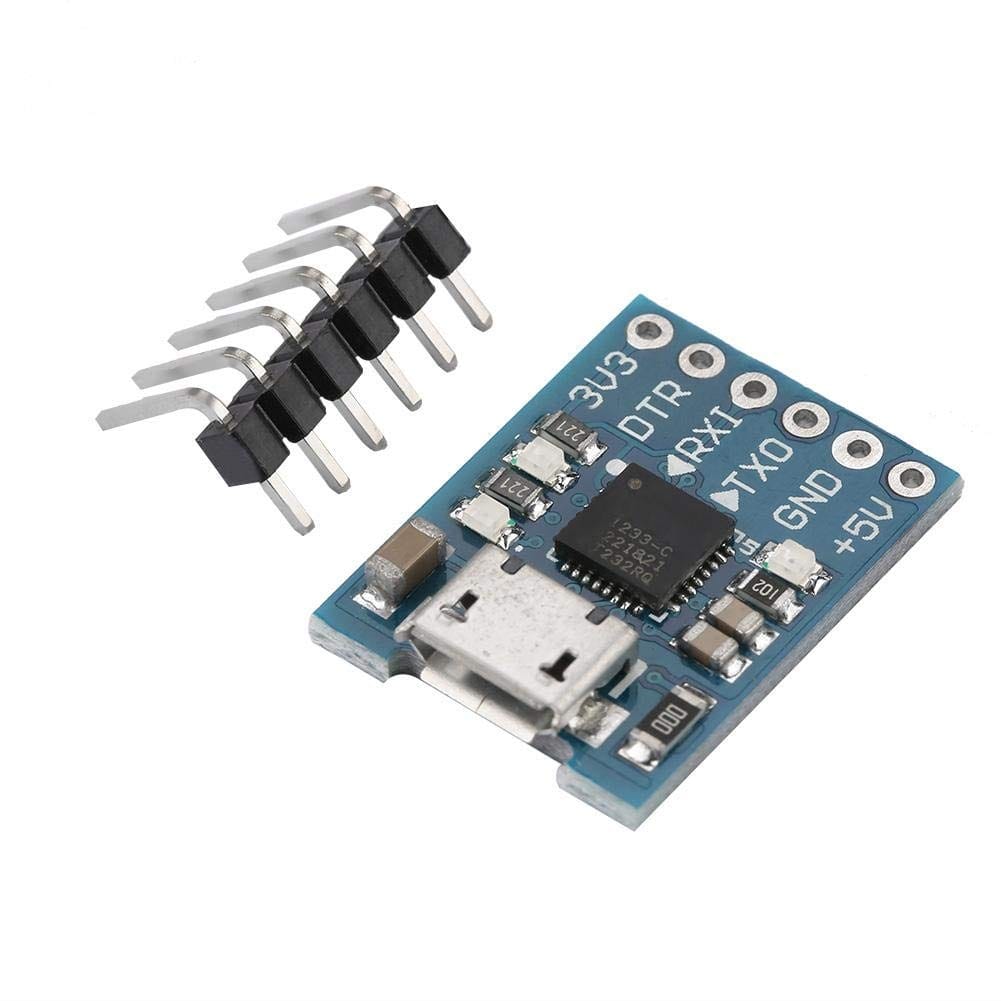

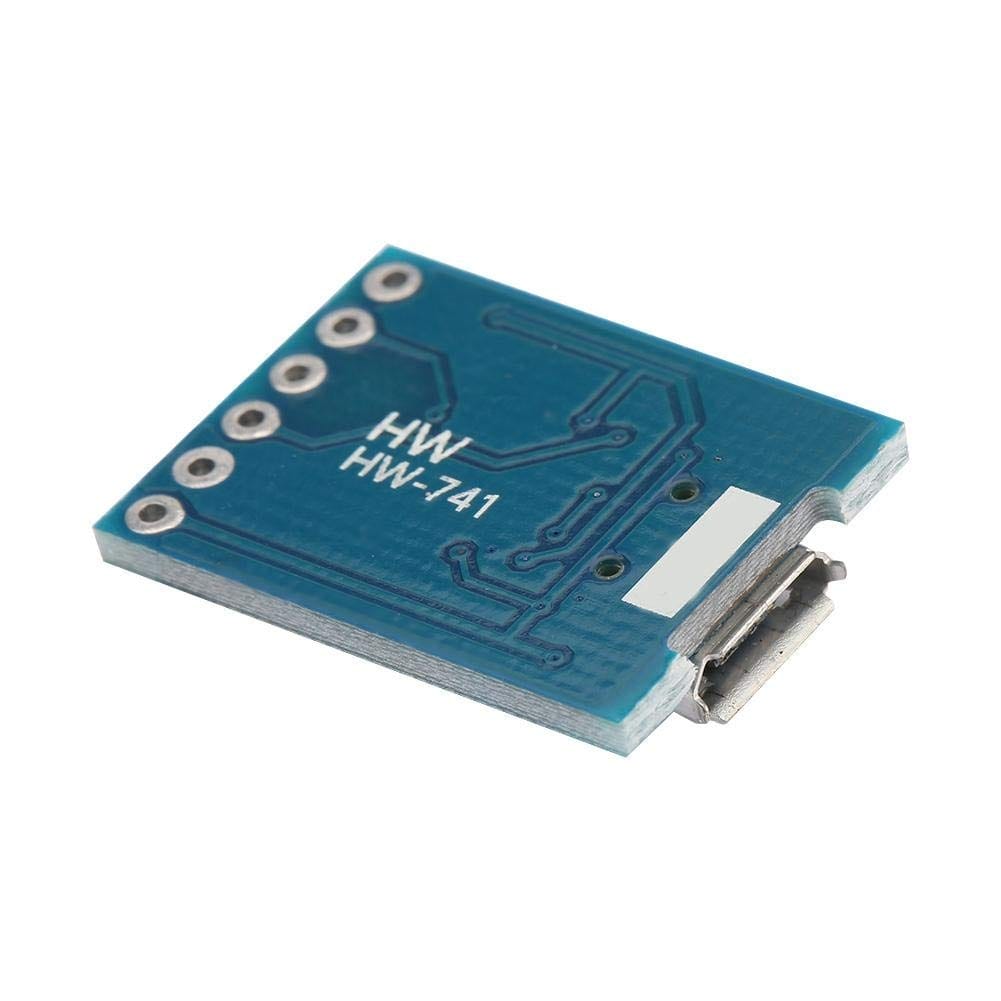

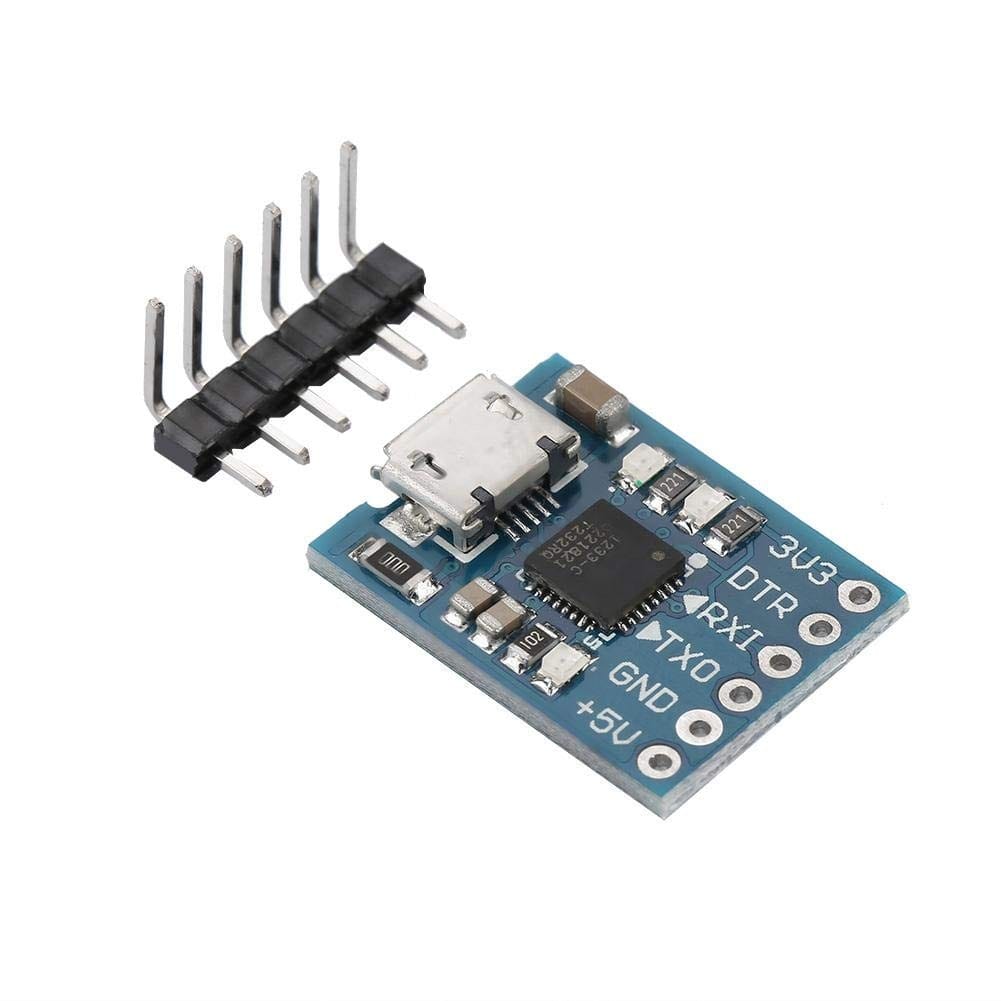

Micro USB 6Pin Serial Converter STC CP2102 USB 2.0 to UART TTL adapter module
to replace FT232 with pins
1, the original CP2102 chip, generates COM port after installing the driver.
2, then the standard input MICRO MINI-USB cable is connected to the computer USB interface,
with 3.3V and 5V two power outputs
3, with a resettable fuse. In the event of accidental short circuit, it can effectively protect your device
and the computer’s USB port to download
4, on-board status indicators, the status indicator of the properly installed unit remains, the send and
receive indicator blinks when communicating with the LED performance indicator.
5, supports baud rates from 300 bps to 1 Mbps between
6. Compatible communication format: 1) data bits 5,6, 7,8; 2) Compatible with 1.5, 2 stop bits; 3)
odd, even, mark, space, no parity
7 compatible operating systems: windows / 8,1 / 7 / vista / xp / 98 OS-X / OS-9 Linux
8, MICRO MINI-USB interface block USB
9, Chip components for regular soldering company, stable quality, beautiful appearance
10 with DTR trigger signal output can be directly for arduino pro mini ATMEGA328P and others
for Arduino board download traffic.
eleven. Module size: 16mm * 20mm Super small?
1. Built-in USB transceiver, without external circuit device
2. Contains clock circuit, without external circuit device
3. Contains power-on reset circuit
On-chip voltage regulator inside 3.3V output
5 Complies with USB2.0 specification requirements
6. Suspended pins support USB sleep state
7. Asynchronous serial data bus compatible with all hand shakes and modulation controller interface signals
8. Data format is 8 bit data, 1 stop bit and parity drill bit
9. 512 byte connotation receive buffer and 512 byte transmit buffer
10. Supports hardware or X-ON / X-OFF Handshake
How to install the driver
Win7 / win8
1, First open the package, as the following path, please remember the installation directory
2, according to the following method to start the service
3. Locate the driver in Device Manager, select update driver, search my computer driver,
Select the newly installed directory, determine the wait as
The correct update drivers automatically find the drivers, because the driving data is invalid, in fact the
problem is often found in windows8, the drive has no problem, the principle has been installed on,
and later discovered It may be a hardware incompatibility.
If you are using Windows8 or windows 8.1, but it is not a genuine ghost or other systems, and uses a
variety of Streamlining system optimization tools, then in the driver installation process, you may
encounter an error in “Invalid data “
The “invalid data” solutions are as follows:
1. Press Winkey + R on the keyboard, the popup “Run” dialog, enter “Services. Msc”,
Also under the “Computer Management” window, find the “service”;
2. You will find in the list of services “Device Installation Service” and “Device Configuration
Manager” two service items,
Make sure these two services are turned on, if they don’t open you can click on the left side
of the “Start” service.
Graphite Crucible Mini Gold Furnace Metal Melting Torch:
Package Included:
1 x CP2102 MICRO USB to UART TTL module STC converter replace FT232 new
