HW-140 4A LCD Digital Display Step-up Step Down Module Buck Converter Voltage Regulator 5.5-30V buy in Pakistan
PKR 1,650
In stock
کسٹمر کو رقم ادائیگی سے پہلے پارسل کھولنے کی اجازت ہے
| Weight | 0.037 kg |
|---|
On Sale Products
Related products
MT3608 DC-DC Adjustable Step Up Boost Module 2A with MICRO USB LM2577
Electronic Components, Active Components, Voltage Converters and Power Supplies, Integrated Circuits
SKU:
1215
In stock
150W DC-DC Boost Converter 10-32V to 12-35V 6A Step Up Voltage Charger Power
Electronic Components, Active Components, Voltage Converters and Power Supplies, Integrated Circuits
SKU:
1188
In stock
SN74HC595N 74HC595N 74HC595 DIP-16 SHIFT REGISTER IC
SKU:
1184
In stock
Soil moisture sensor Soil Hygrometer Humidity Detection module
SKU:
1176
In stock
soil humidity module to the environmental humidity is the most sensitive, generally used to detect soil moisture.
module in soil moisture can not reach the setting threshold, DO mouth output high level, when soil moisture more than setting threshold, module D0 output low level;
small plate digital output D0 can be directly connected with the single chip microcomputer, through the single chip microcomputer to detect the high and low level, thus to detect soil moisture;
TTP223 Touch Switch Button Module Single Channel Self Locking
SKU:
1148
In stock
This module is based on a touch detection IC (TTP223B) of Capacitive type touch jog switch module . This module default output low, the low-power mode to mode; when a finger touching the corresponding position, the module will output high and returns low again touch. Mode is switched to fast mode; when for 12 seconds without touching
ESP8266 esp-01 remote serial Port WIFI wireless module D185
SKU:
1124
In stock
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
HC-05 HC05 Bluetooth JY-MCU 6 Pin Module
SKU:
1069
In stock
MB102 Breadboard Power Supply Module 3.3V 5V Bread Board
SKU:
1058
In stock
Brand new & high quality
Breadboard power supply module, compatible with 5 V, 3.3 V
Apply to MB102 breadboard
Input voltage: 6.5-12 V (DC) or USB power supply
Output voltage: 3.3V/5V can switch over
Maximum output current: <700 ma
Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
4-Phase Stepper Motor and Driver Board ULN2003 Module Arduino
SKU:
1018
In stock
12V 8A Switch Dimmer Brightness Adjustable Controller for DC motor LED Strip Light
SKU:
1189
In stock
Description
Product description:
HW-140 LCD Digital Display Step-up Step Down Module Buck Converter Voltage Regulator 5.5-30V
Feature:
1. LCD can display input and output voltage, output current and output power.
2. Anti-backconnection protection of input terminal, backconnection will not burn up.
3. Voltage can be boosted, voltage can be lowered, output voltage 0.5-30V arbitrary regulation,
limiting current 0-4A arbitrary regulation.
4. The output terminal is anti-backfilling, and no anti-backfilling diode is added when charging the battery.
5. Keyboard control output ON/OFF status, and can set the default power on to ON or OFF.
6. Using step-up and step-down chip as main controller, external 60V 75A MOS transistor as switch,
double 60V 5A SS56 Schottky as rectifier, 60V voltage withstand value is better than the immature scheme
of XL6009/LM2577 on the market (many devices have insufficient voltage withstand value, the voltage
withstand value of MOS transistor and Schottky diode must be greater than the input plus input voltage value).
7. Small output ripple, LC filter; typical value: about 100 mV.
8. Containing radiator, feeding module supports isolation column.
Specification:
Input Voltage: 5.5-30V (Input Voltage 5V, can also achieve step-up and step-down, but the
measurement of voltage and current is inaccurate; under-voltage protection below 4.7V)
Output voltage: 0.5-30V
Output Current: It can work stably in 3A for a long time and reach 4A under enhanced heat dissipation.
Output power: natural heat dissipation 35W, enhanced heat dissipation 50W
Voltage display resolution: 0.01V
Current Display Resolution: 0.002A
Conversion efficiency: about 88%.
Soft Start: Yes (high power module with load may fail when starting)
Input Reverse Connection Protection: Yes
Output anti-backfilling: Yes
Short circuit protection: Yes
Working frequency: 180KHZ

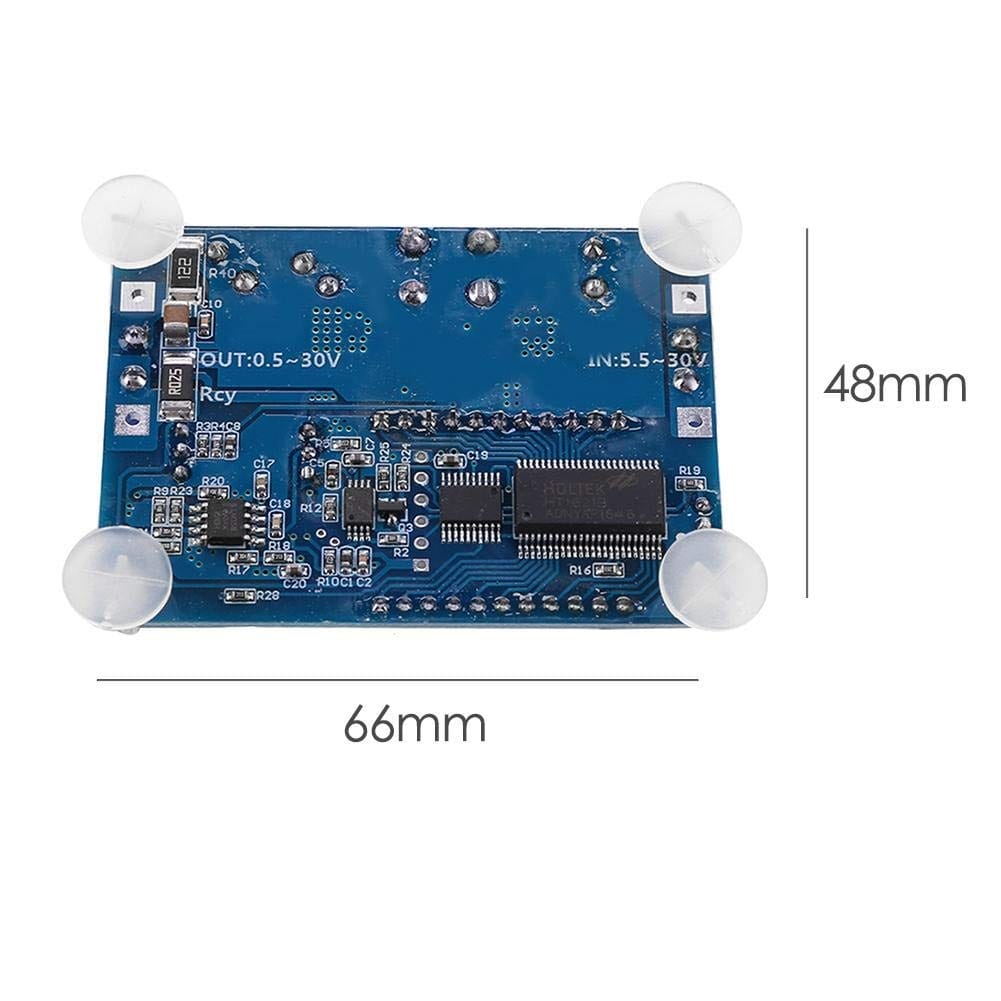

Size: 66*48*21mm/2.59*1.88*0.82”
Installation hole: 4mm in diameter
Weight: 46g
Package included:
1 X Step Down Step Up Module
