6S 22.2V BMS 12A / 14A , 6 packs of 18650 Standard & Balanced PCB

24V 6S 22.2V BMS 12A / 14A , 6 packs of 18650 Standard & Balanced PCB version
Description:
Upgrade your lithium battery packs with our 22.2V 6S BMS (Battery Management System), designed for 6 packs of 18650 lithium-ion cells. This PCB protection board ensures safe charging, reliable discharging, and longer battery life with built-in protection features.
Available in three variations to match your project needs:

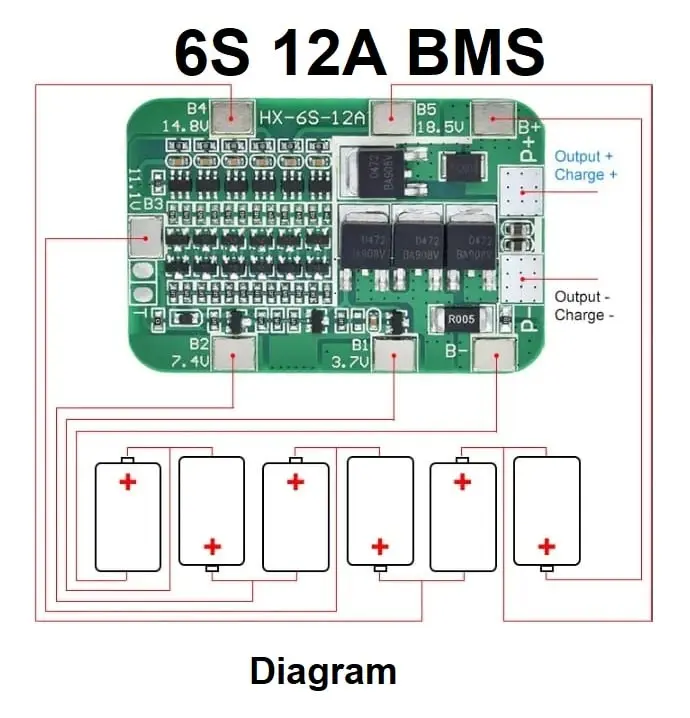

6S 12A Standard Version : Compact and efficient, ideal for smaller battery applications.

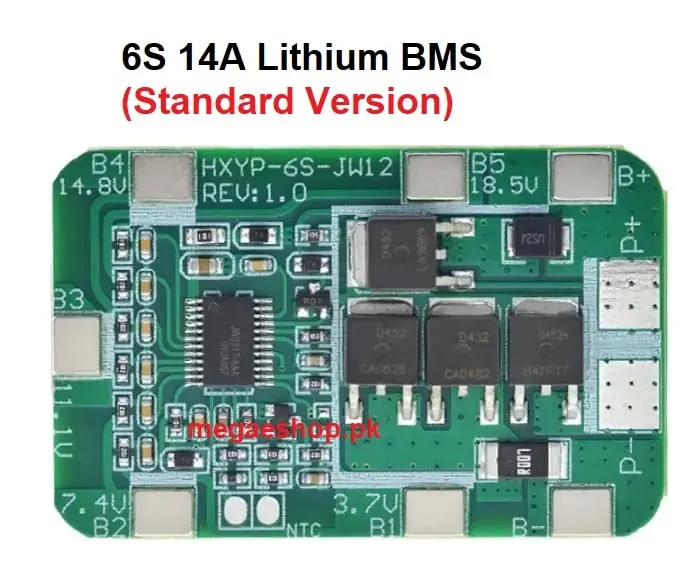

6S 14A Standard Version : Supports higher discharge current for more demanding devices.

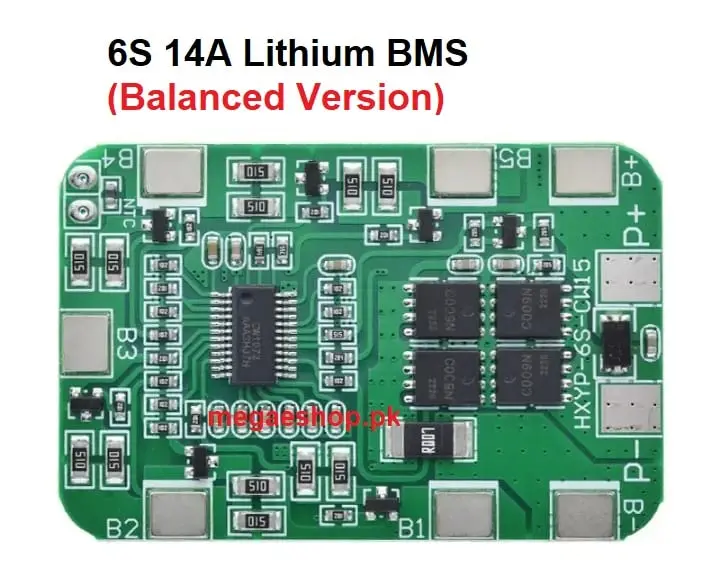

6S 14A Balanced Version : Adds cell balancing, giving you maximum performance, consistent power, and extended battery lifespan. (Balanced = best for long-term reliability, Standard = best for cost-effective builds.)

Key Features:
Compatible with 22.2V (6S) lithium-ion battery packs
Built-in protection: overcharge, over-discharge, overcurrent & short-circuit
Standard = affordable & simple, Balanced = optimized life & performance
Current support options: 12A or 14A
Reliable PCB design for 18650 cells
Perfect for DIY battery packs, e-bikes, solar storage, RC projects, and power banks. Just choose the version that fits your setup for the right balance of safety and performance.

Applicable assembly: Nominal 3.7V Batteries / 6 strings
Package Included:
1 * 6S 15A lithium protection board
