PICKIT 3 Programmer Development Board

Description:

Programmer PICKIT3 Universal Programmer Seat Programming

PICKIT3 Programmer Description:

USB (Full speed 12 Mbits/s interface to host PC)
Real-time execution
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 2.0 volts (2.0v to 6.0v range)
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of microcontroller
Erase of program memory space with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go
The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable
price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).
The MPLAB PICkit 3 is connected to the design engineer’s PC using a full speed USB interface and can be connected to
the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).

Instructions for use:
Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.
The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.
The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation.
(Note: a separate program of the seat can not be programmed the chip is programmed functions)
The seat supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Package Included:

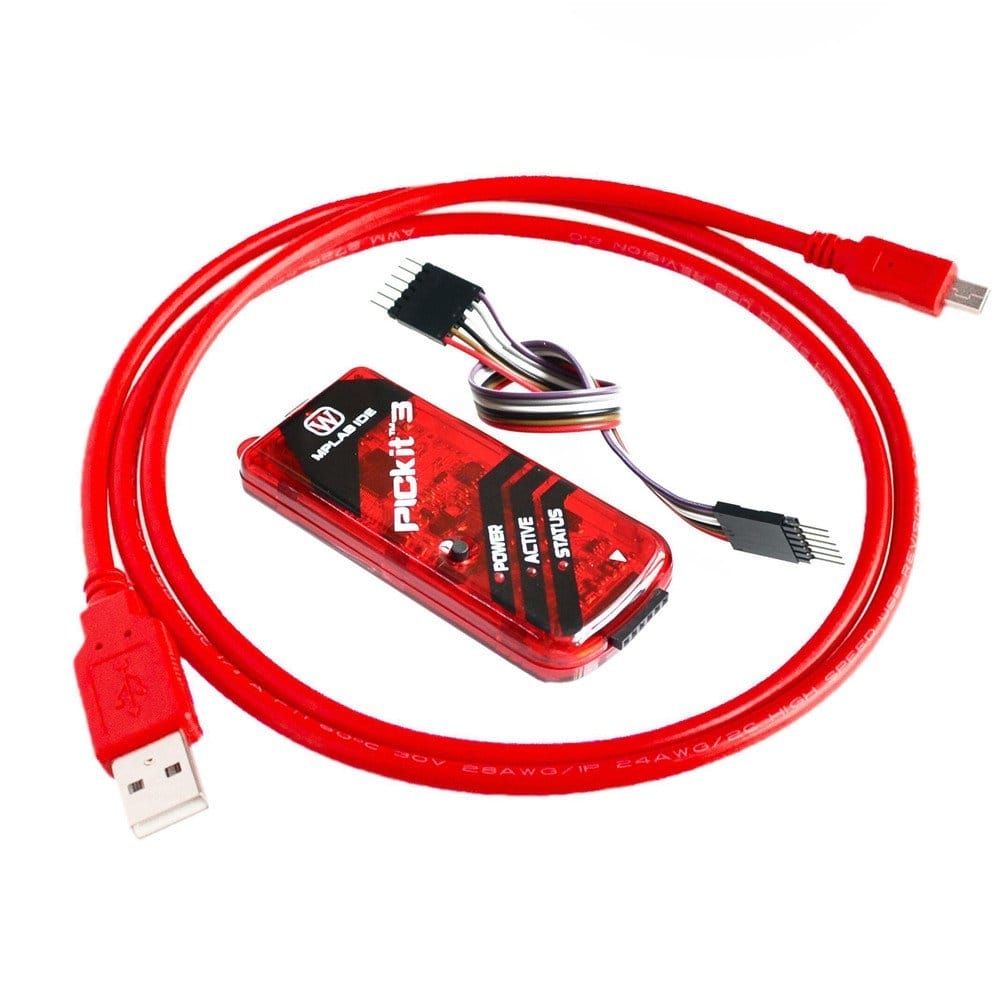

1 X PICKIT3
1 X USB cable
1 X 6pin cable
