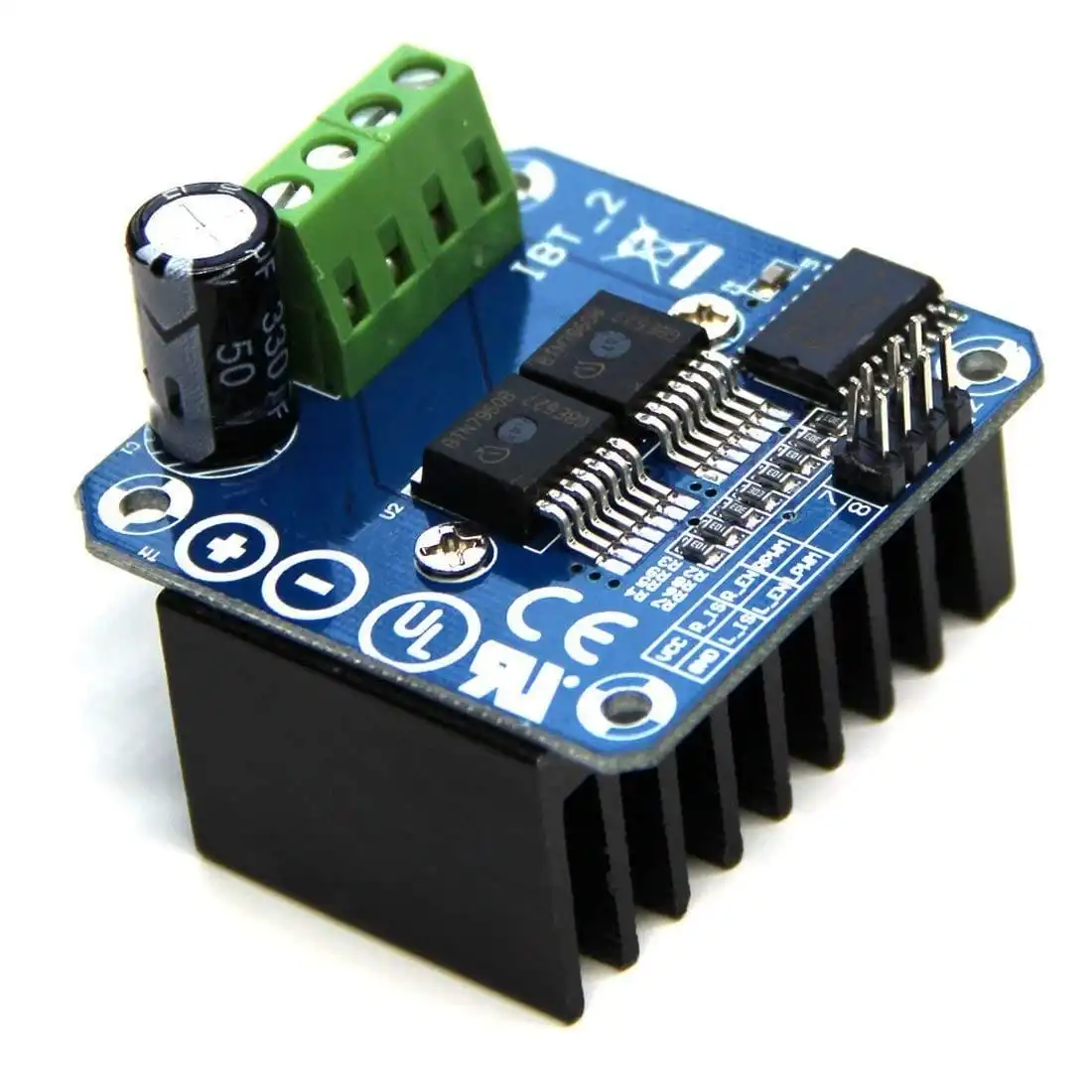

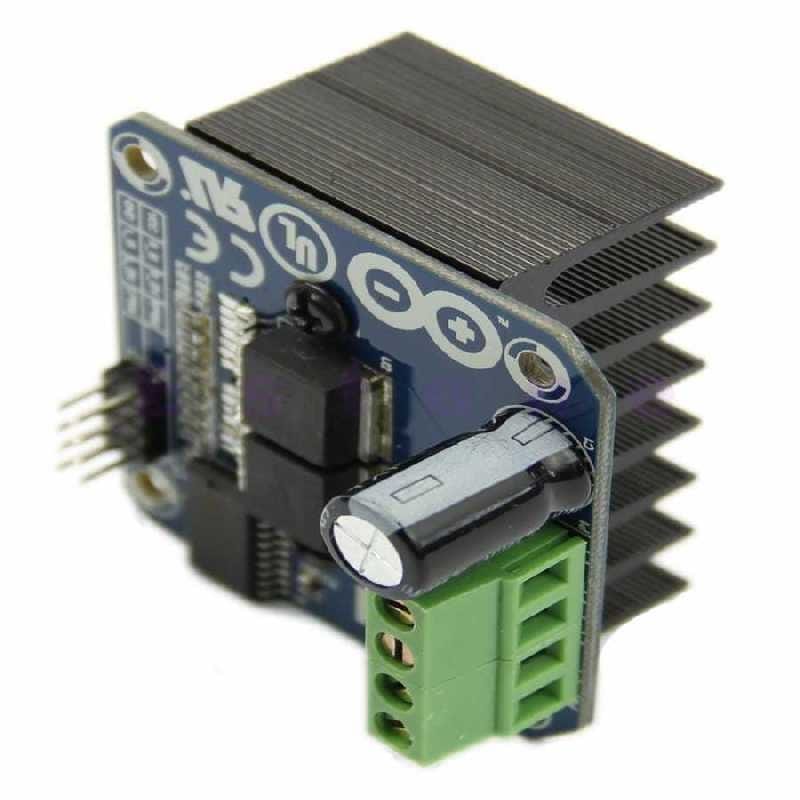

Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM

Product Description:

Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM for Arduino Module/Smart Car Driver

Description:

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module
with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and
braking, effectively isolating the microcontroller and motor driver! High-current 43A

Features:

5V isolate with MCU, and effectively protect MCU; 5V power indicator on board; voltage indication of motor driver output end;can solder heat sink;
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply
(can share with MCU 5 V);
Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an
error signal output;
Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V

Specification:
Double BTS7960 large current (43 A) H bridge driver;
5V isolate with MCU, and effectively protect MCU;
5V power indicator on board;
voltage indication of motor driver output end;
can solder heat sink;
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
Isolation chip 5 V power supply (can share with MCU 5 V);
Size: 4 * 5 * 1.2 cm;
Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
Two heat flow passing through an error signal output;
isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
the supply voltage 5.5V to 27V

Package List:
1x Double BTS7960B DC 43A Stepper Motor Driver
