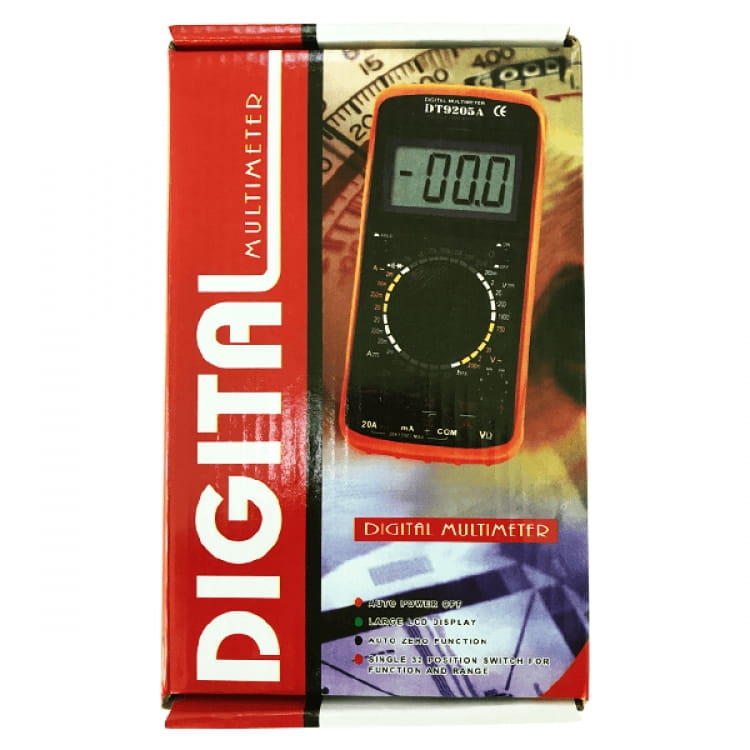

DT9205A Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool

DT9205A Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool - Image 2

DT9205A Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool - Image 3

DT9205A Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool

Name: DT9205A Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool - Price in Pakistan
SKU: 2449
Price: 1270 PKR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5 out of 5 based on 1 customer rating

₨ 1,270

This Digital multimeter is a kind of convenient operation, accurate reading, complete function, small size, easy to
carry and use battery as power, handheld and large LCD screen multimeter, 3 1/2 digits display , can be used to
measure DC voltage/current, AC voltage/current, resistance, capacitance testing, diode and transistor.
Big LCD screen display
Durable,diode transistor measurements
AC/DC voltage current,resistance,frequency,temp,capacitance,continuity measurements
Overload protection
Low battery indication

Delivery in 1–5 Working Days* i

کسٹمر کو ادائیگی سے پہلے پارسل کھولنے کی اجازت ہے۔

SKU: 2449 Categories: Hand Tools & Repairs, Home & Living Accessories, Multimeters & Measuring Instruments

Digital Multimeter AC/DC Voltmeter Ammeter Resistance Capacitance Meter Tester Tool – DT9205A

Features:

Big LCD screen display
Durable,diode transistor measurements
AC/DC voltage current,resistance,frequency,temp,capacitance,continuity measurements
Overload protection
Low battery indication

Specifications:

General Spec:	Range:	Accuracy:
DC Voltage	200mV/2V/20V/200V/1000V	±(0.5%+2)
AC Voltage	200mV/2V/20V/200V/700V	±(0.8%+3)
DC Current	2mA/20mA/200mA/20A	±(1.2%+2)
AC Current	2mA/20mA/200mA/20A	±(1.2%+3)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ	±(0.8%+2)
Capacitance	2nF/20nF/200nF/2uF/200uF	±(4.0%+5)
Frequency	2kHz/20kHz/200kHz (Only DT9208A)	±(1.5%+5)
?	(-20~1000)? (Only DT9208A)	±(1.0%+3)
Diode Triode Test	Yes
Low voltage indication	Yes
Continuity buzzer	Yes
Overload protection	Yes
Power Supply	9V battery

HFE test and on-off circuit, etc. Good for engineering design, laboratory, production test, factory service, field operation and industrial maintenance.

Package includes:
1 x Digital DT9205A Multimeter LCD AC/DC Ammeter Resistance Capacitance Tester
1 x Connection Cables
1 x battery included
1 x English Manual
