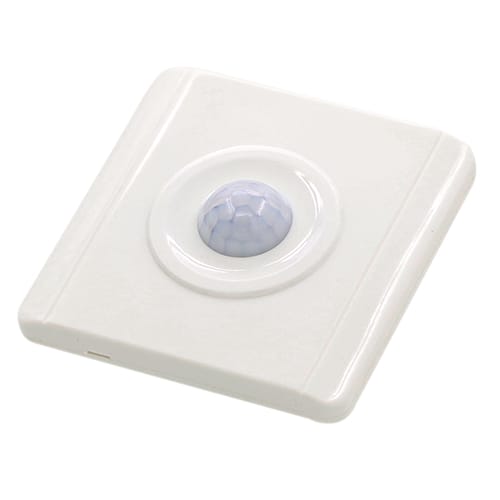

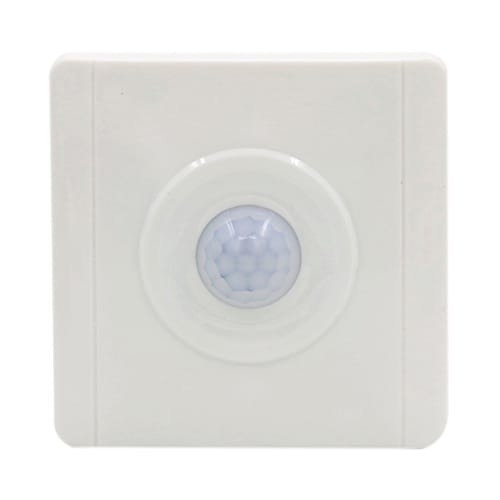

PIR Infrared Motion Sensor Auto On off Switch Module Auto Lights Lamps

This IR motion sensor light switch adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start
automatically. when they leave light will delay and shut down automatically.

Super saving electricity, power consumption 0.08 degrees per year
Wide working voltage, normally working in 100V-250V
Filament lamp impedance load should lower than 100W, LED energy saving lamps impedance load should lower than 60W.

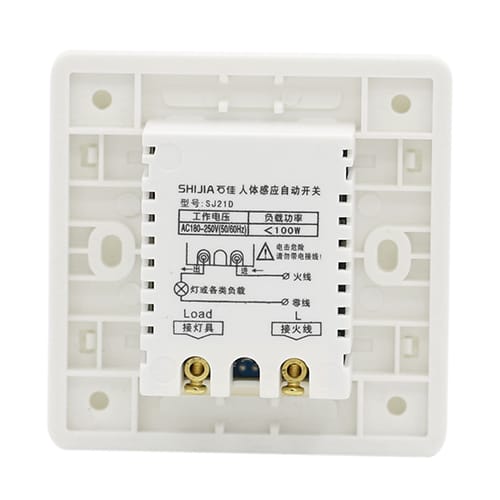

Non-contact, simple installation single wire system,just like ordinary switch connection
Sensitivity can’t adjustable
Lightning protection, strong anti-jamming capacity, more safe and reliable

Specification:
Working Power: AC100V~250V, 50/60HZ
Load Power: LED≤40W, Energy Saving≤60W, Incandescent≤100W, Fan≤50W
Standby power 0.0088W
Illumination: 5LUX~5000LUX
Sensor Distance: 6~10m
Sensor Angle: 110~140degree
Application: Corrido,toilet,basement, warehouse,garage ,and other places of automatic lighting, exhaust fan convulsions and other automatic control electrical, can be used for security purposes at the same time.

Attention
1. To turn off power when installation, must be installed by professional
2. This switch can work normally after 45 seconds when electricity, it is infrared Sensor preheat time
3. Do not overload to use

Package Included:
1 x IR Motion Sensor Light Switch
